Mitchell Intelligent Vision

Mitchell Intelligent Vision utilizes commercial smart glasses powered by the Qualcomm® Snapdragon™ XR Platform. The solution gives repairers a single tool to access and utilize the resources they need to enable a proper and safe repair, during the repair, without disrupting their workflow.

Through use of extended reality, Repair Technicians save time by operating the glasses hands-free, using voice activation to access the most up-to-date, vehicle-specific repair procedures, within their field of vision. The solution also allows technicians to call and collaborate with other experts in real-time, right at the vehicle, and streamlines important functions such as check-in and check-out processes.

How to


Action Procedure/Voice Command
Turn the device on Press and hold the power button on the side of the device.
Turn the device off

  1. Say My Controls.

  2. Say Power Options.

  3. Say Power Down.

Put the device in sleep mode

  1. Say My Controls.

  2. Say Power Options.

  3. Say Sleep Now.

Click here to view instructions for WiFi Setup

In order to use The Mitchell Intelligent Vision workflows, the device needs to be authenticated with your Mitchell Connect account.

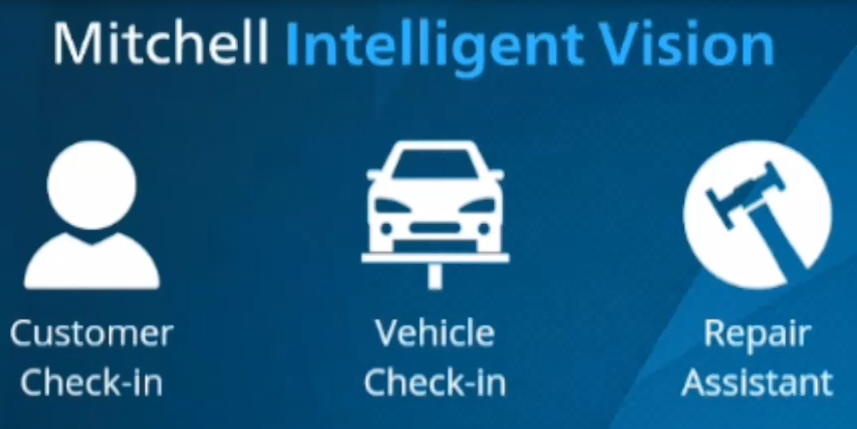

  1. With the smart glasses, select a workflow from the main menu. For example: Say Customer Check-In.

  2. You are directed to scan an authorization QR code from Mitchell Connect that logs you in. Login to Mitchell Connect.

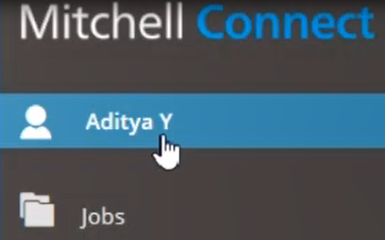

  3. On the navigation pane in Mitchell Connect, click your name to access your profile.

  4. Under Mitchell Intelligent Vision Authentication, click Generate QR Code.

  5. The QR code appears in Mitchell Connect. Scan the code with the smart glasses.

  6. In Mitchell Connect, click Done. The device is ready when you see the User has been Signed In prompt.

Reference - Voice Activated Commands

Mitchell Intelligent Vision utilizes voice-activated commands. Use the following commands to use the system:

Say the voice command to execute actions:


Action Voice Command
Go to the home screen

Navigate home
Go back to the previous screen Navigate back
Go to the system control panel My controls
Mute the microphone temporarily Mute microphone
Unmute the microphone No Voice Command: Tap the Action button on the side of the device, located next to the Power button.
View help for instructions and commands. Instructions related to the current screen appears in a Help window. Show help

Say the voice command to execute actions:


Action Voice Command
Navigate up one page Page Up
Navigate down one page Page Down
Navigate one page to the left Page Left
Navigate one page to the right Page Right

  1. Say Show Help to access the information regarding the commands associated with the current screen.

  2. The help system appears in a new window. The Show Help command is available from all screens. The window displays for two seconds.

Some controls on the screen have no name: Scroll button, file button with numbered file names (for example: 3545-x.pdf), set as the label. In these situations, the device automatically proposes an alternative speech command, and assigns a number. This number appears next to the associated control on the screen.

  1. To view the specific control number for the current screen, say Show Help.

  2. To select a specific control, say the number assigned to it. For example, you can say Select Item 1 to select the first unnamed button or say Select Item 2 to select the next unnamed button.

  • Mute: Say Mute Microphone to mute your microphone. The device won't respond to your voice commands while the microphone is muted. A red warning sign appears on the screen to remind you the microphone is muted.

  • Unmute: Tap the Action button on the side of the device next to the Power button.
