View ADAS Components for Selected Vehicle

View a list of ADAS components that may be available on a selected vehicle as soon as the first scan is completed. Use this feature to quickly find ADAS controllers to aid in your repair planning, and learn what calibrations may be needed post repair.

How to

  1. Do one of the following:

  • View all reports: On the navigation pane, click Diagnostics. Click View Reports on one of the dashboards, and then select the report you want to view.

  • View reports from a specific job: On the Job Overview page, click Scans Available or Calibrations on the Diagnostics card. On the Diagnostics Reports page, select the report you want to view.

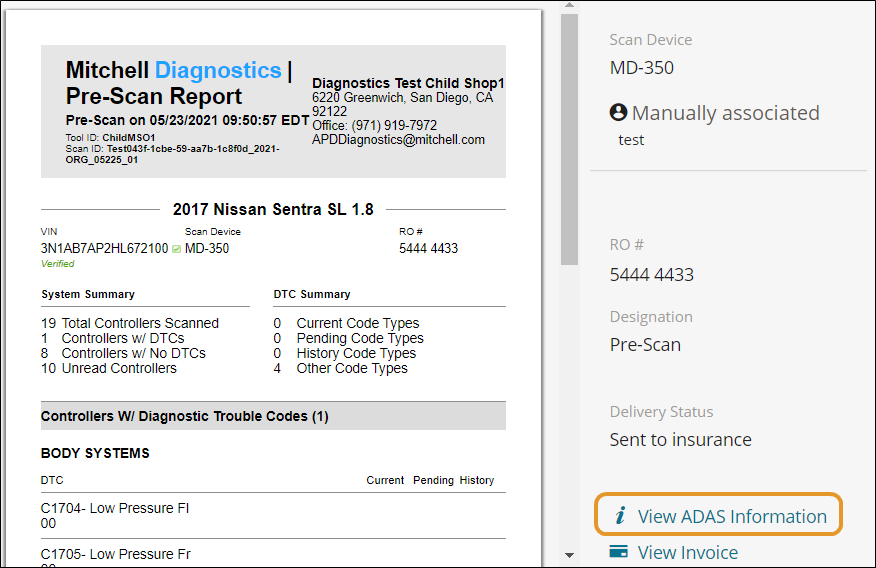

  1. On the scan summary page, in the panel on the right, click View ADAS Information.

    Note: ADAS information is not available for all vehicles. If View ADAS Information does not appear in the right panel on the Scans Summary page, ADAS information is not available.

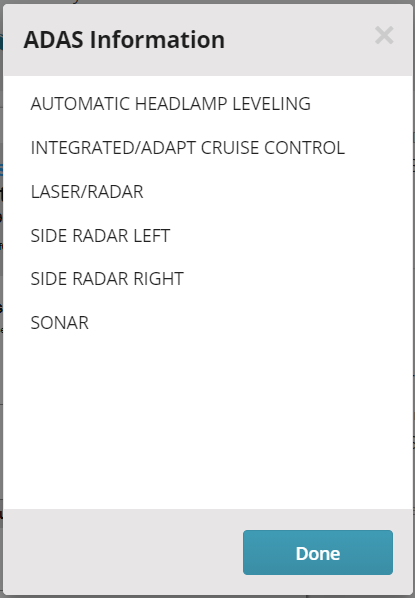

  1. The names of the ADAS controllers appear in the ADAS information window. Click Done when complete.
